Hex Socket Head Cap Bolt

Hex Socket Head Cap Bolt: Precision Fasteners for High-Strength Applications

The hex socket head cap bolt is a highly reliable and durable fastener, widely used in a variety of applications requiring high-strength, precision fastening. Known for its cylindrical head with an internal hexagonal drive, the hex socket head cap bolt is ideal for environments where space is limited or a flush finish is needed. Its design allows for high torque to be applied, ensuring secure and tight connections even in demanding conditions.

Whether in machinery, automotive, or construction, the hex socket head cap bolt provides an effective solution for securing parts that require high clamping force.

What is a Hex Socket Head Cap Bolt?

A hex socket head cap bolt is a type of bolt that features the following key characteristics:

• A hexagonal recess in the bolt's head, designed to be driven with an Allen wrench or hex key, which provides greater torque and control during installation.

• A fully threaded shaft, allowing the bolt to provide a strong, secure hold across the entire length of the threaded area.

• Made from high-strength materials, including carbon steel, stainless steel, or alloy steel, making it suitable for a variety of industrial and mechanical applications.

The hex socket head cap bolt is engineered to provide a precise and secure fastening solution, making it a preferred choice for high-performance applications.

Key Features of Hex Socket Head Cap Bolts

1. High Strength and Durability
   The hex socket head cap bolt is designed to handle high-stress environments. Made from robust materials like stainless steel or alloy steel, it offers superior tensile strength and resistance to wear, ensuring secure connections even in challenging conditions.

2. Flush-Mounted Design
   One of the standout features of the hex socket head cap bolt is its ability to sit flush with the surface, providing a neat, streamlined appearance. This is especially useful in applications where space is limited or aesthetics are important.

3. Precision Tightening
   With the hexagonal drive, the hex socket head cap bolt allows for precise torque application using an Allen wrench. This ensures that the bolt can be tightened accurately, reducing the risk of damage to the fastener or surrounding materials.

4. Corrosion Resistance
   For applications in harsh environments, hex socket head cap bolts are available in corrosion-resistant materials such as stainless steel or with protective coatings like zinc plating. This makes them ideal for use in outdoor or marine applications where exposure to moisture is common.

5. Versatility
   The hex socket head cap bolt is used in a wide range of industries, including automotive, aerospace, and industrial machinery. Its versatility makes it suitable for both heavy-duty and precision fastening needs.

Common Applications of Hex Socket Head Cap Bolts

• Automotive Industry: Hex socket head cap bolts are widely used in automotive assemblies, where secure and high-strength fastenings are needed for parts like engines, suspension systems, and chassis components.

• Aerospace: The high strength and precision of the hex socket head cap bolt make it a preferred choice for aerospace applications, securing critical components in aircraft and spacecraft.

• Industrial Machinery: In machinery and equipment manufacturing, hex socket head cap bolts are used to secure mechanical parts that must withstand high pressure and stress.

• Construction: Ideal for structural and framing work, the hex socket head cap bolt provides reliable and secure fastening for heavy-duty construction projects.

• Electronics: Due to its precision and ability to handle tight spaces, hex socket head cap bolts are also used in electronics assembly, securing circuit boards and other delicate components.

How to Install Hex Socket Head Cap Bolts

1. Prepare the Hole
   Ensure the hole is properly sized to accommodate the hex socket head cap bolt. The hole should match the bolt's diameter and depth for a proper fit.

2. Align the Bolt
   Insert the hex socket head cap bolt into the hole, ensuring the threaded portion engages the material securely.

3. Use an Allen Wrench
   Fit an Allen wrench into the hexagonal recess of the bolt's head. Tighten the bolt by applying consistent, controlled torque. This will ensure a secure connection without damaging the bolt or surrounding material.

4. Check the Tightness
   After installation, check the bolt's tightness to ensure that it has been properly secured. Over-tightening should be avoided, as it could cause damage to the bolt or the material being fastened.

How to Choose the Right Hex Socket Head Cap Bolt

When selecting a hex socket head cap bolt, consider the following factors:

• Material: Choose carbon steel for high strength, stainless steel for corrosion resistance, or alloy steel for high-performance applications.

• Size and Thread Type: Ensure the bolt's size, length, and thread type match the requirements of your project.

• Finish: Depending on your environmental conditions, choose a coating like zinc plating, black oxide, or plain for added corrosion protection.

• Strength Rating: Check the bolt's tensile strength to ensure it can handle the required load for your application.

Conclusion

The hex socket head cap bolt is an essential fastening solution for a wide range of industries. Offering high strength, ease of installation, and a clean, flush-mounted design, it provides a reliable and durable connection for heavy-duty and precision applications. Whether in automotive, aerospace, or industrial machinery, the hex socket head cap bolt delivers exceptional performance, ensuring that your fastenings remain secure and intact in even the most demanding environments.

Pictures

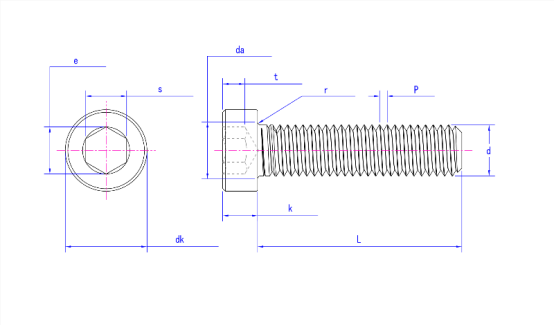

Product drawing

Product Specification
