AS 1111.1 Hexagon Head Bolts
Product: AS 1111.1 Hexagon Head Bolts
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
AS 1111.1 is a standard for metric hexagon head bolts, Class C. Hexagon head bolts are a common fastener widely used in various machinery and equipment. Its head is designed in a hexagonal shape, making it easy to tighten or loosen using tools such as a wrench or screwdriver. Bolts under the AS 1111.1 standard have detailed regulations on parameters such as thread, pitch, force cross-sectional area, and minimum breaking torque to ensure the performance and quality of the bolts.

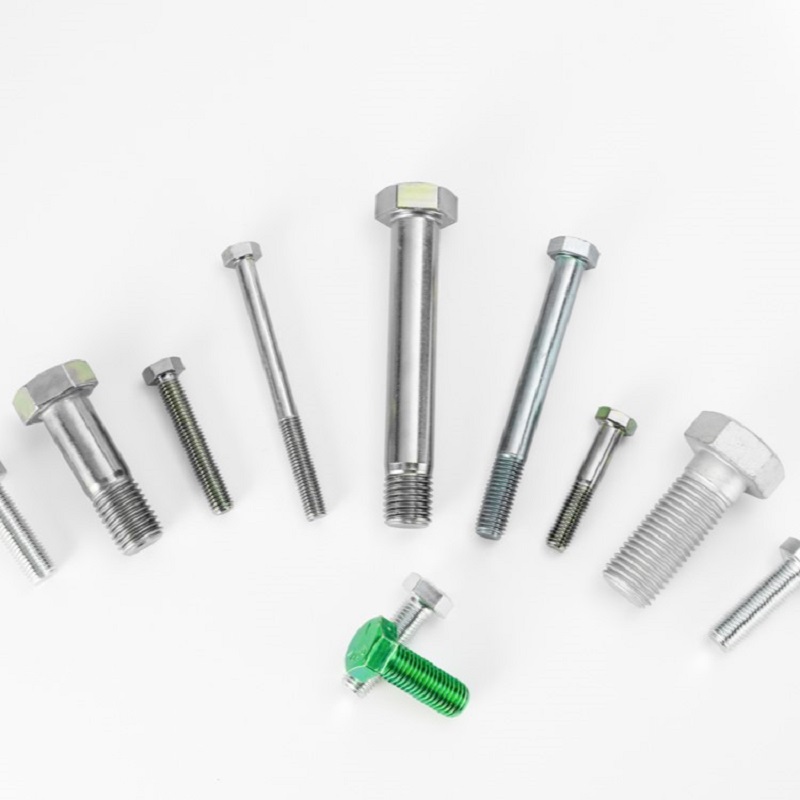

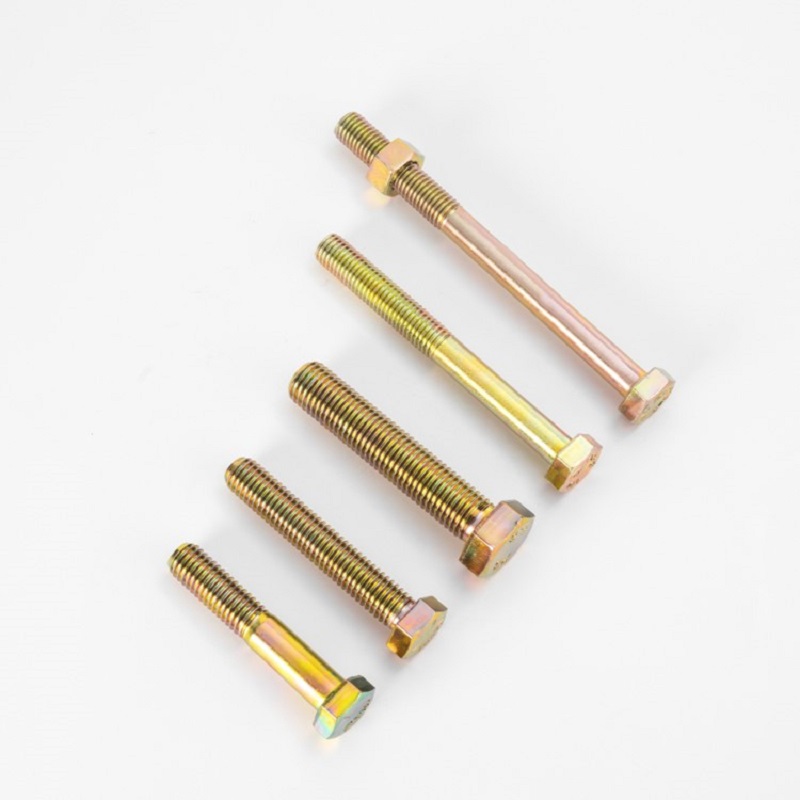

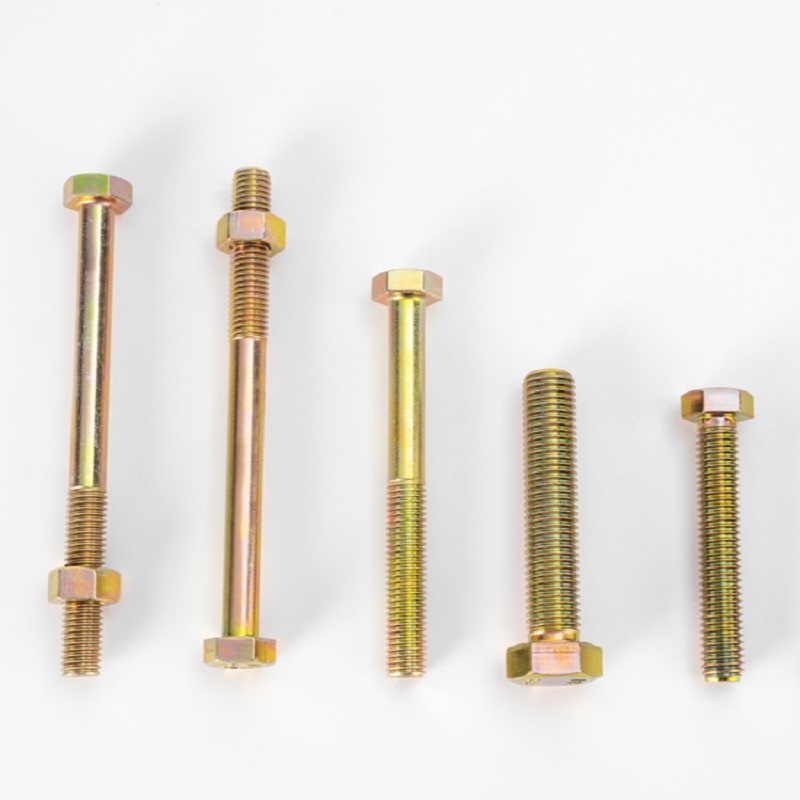

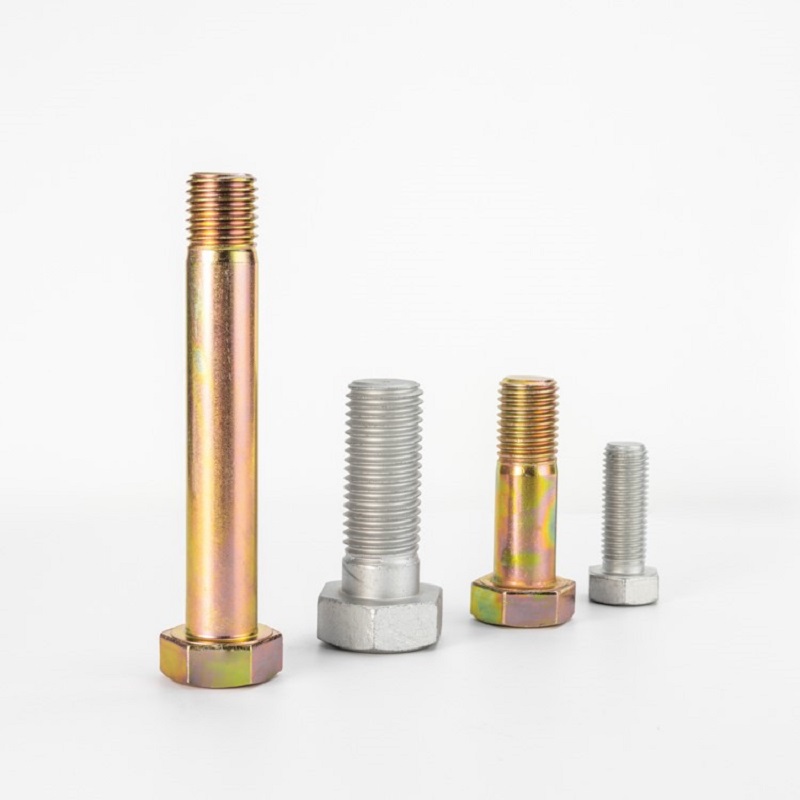

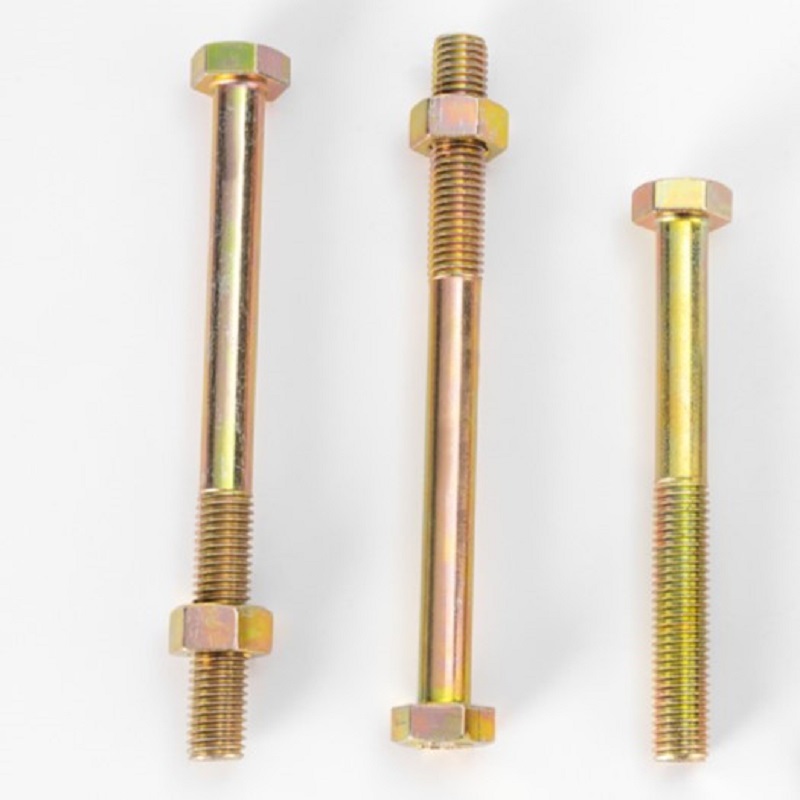

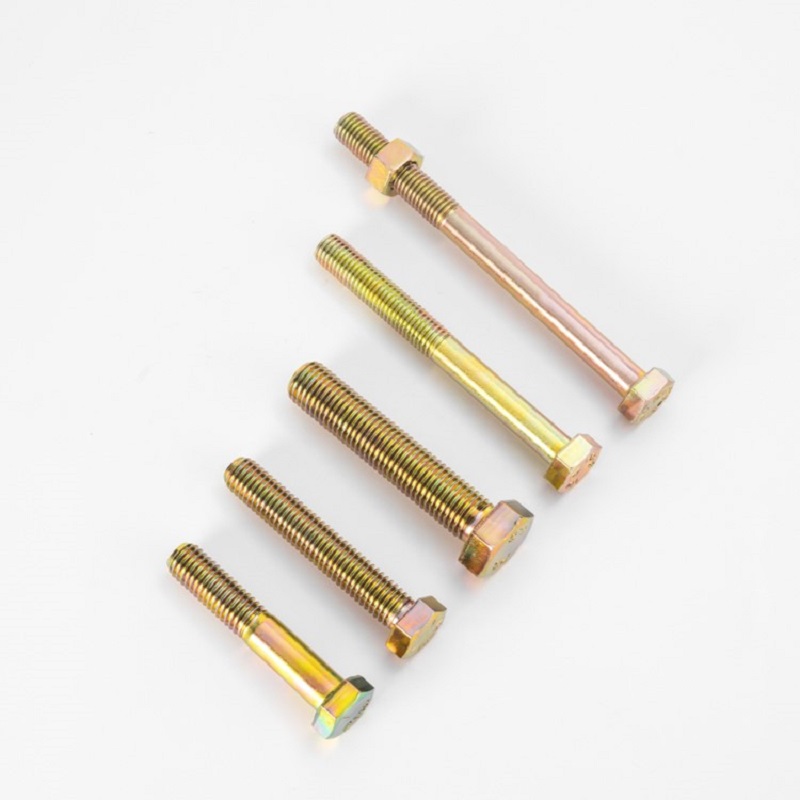

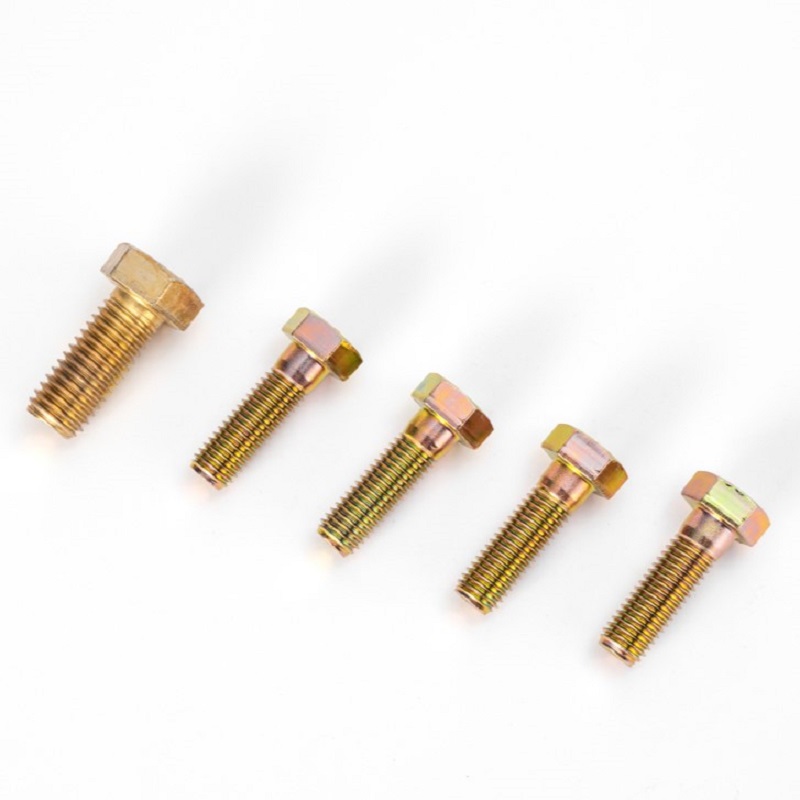

Pictures

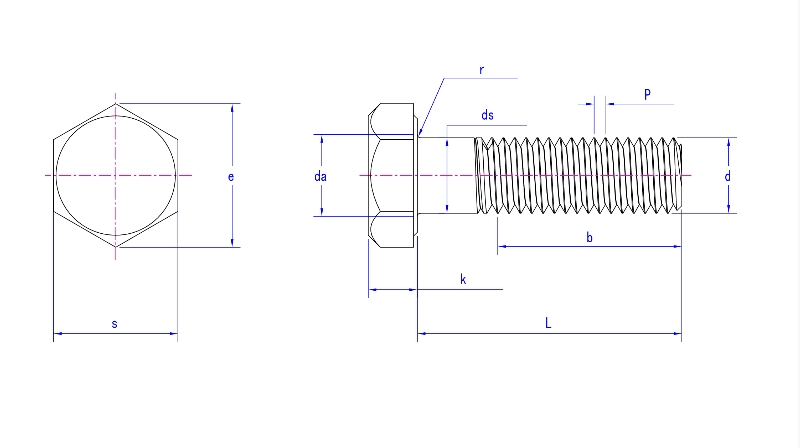

Product drawing
Product Specification
Size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |
P | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 | 4.5 | 4.5 | 5.0 | 5.0 | 5.5 | 5.5 | 6.0 | ||
da max | 6.0 | 7.2 | 10.2 | 12.2 | 14.7 | 16.7 | 18.7 | 21.2 | 24.4 | 26.4 | 28.4 | 32.4 | 35.4 | 38.4 | 42.4 | 45.4 | 48.6 | 52.6 | 56.6 | 62.6 | 67 | 71.0 | 75 | |
ds | max | 5.48 | 6.48 | 8.58 | 10.58 | 12.7 | 14.7 | 16.7 | 18.7 | 20.84 | 22.84 | 24.84 | 27.84 | 30.84 | 34.0 | 37.0 | 40.0 | 43.0 | 46.0 | 49.0 | 53.2 | 57.2 | 61.2 | 65.2 |
min | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 13.3 | 15.3 | 17.3 | 19.16 | 21.16 | 23.16 | 26.16 | 29.16 | 32.0 | 35.0 | 38.0 | 41.0 | 44.0 | 47.0 | 50.8 | 54.8 | 58.8 | 62.8 | |
e min | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
k | max | 3.875 | 4.375 | 5.675 | 6.85 | 7.95 | 9.25 | 10.75 | 12.4 | 13.4 | 14.9 | 15.9 | 17.9 | 19.75 | 22.05 | 23.55 | 26.05 | 27.05 | 29.05 | 31.05 | 34.25 | 36.25 | 39.25 | 41.25 |
min | 3.125 | 3.625 | 4.925 | 5.95 | 7.05 | 8.35 | 9.25 | 10.6 | 11.6 | 13.1 | 14.1 | 16.1 | 17.65 | 19.95 | 21.45 | 23.95 | 24.95 | 26.95 | 28.95 | 31.75 | 33.75 | 36.75 | 38.75 | |
r min | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | |
s | max | 8.0 | 10.0 | 13.0 | 16.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 | 34.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 |
min | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33.0 | 35.0 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
Support customer customization | ||||||||||||||||||||||||

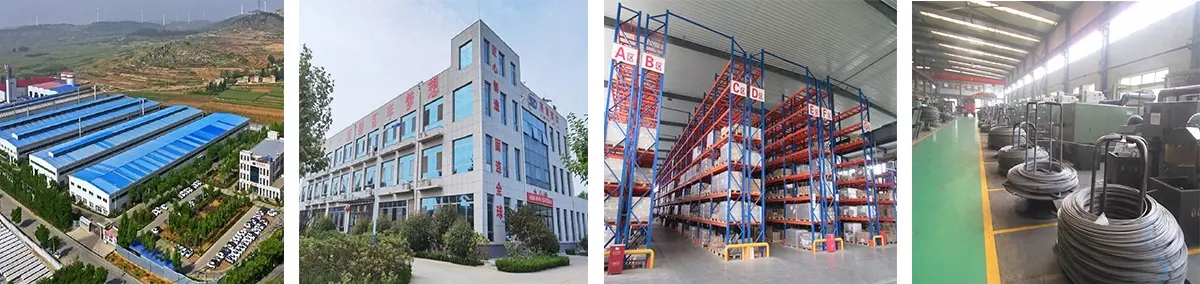

Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Workshop

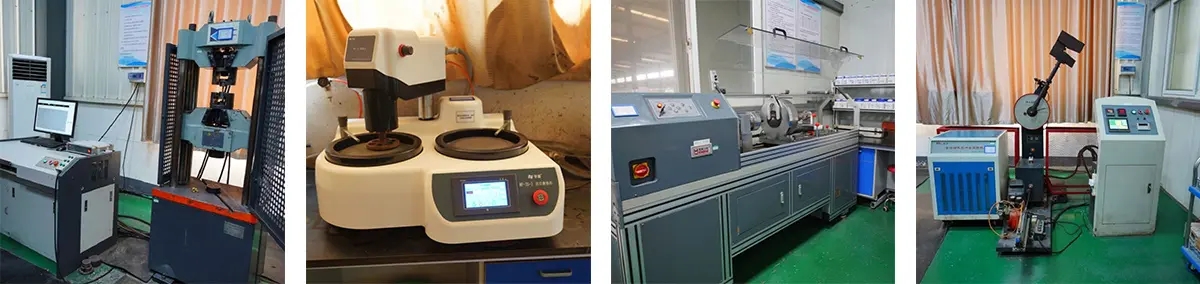

Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.

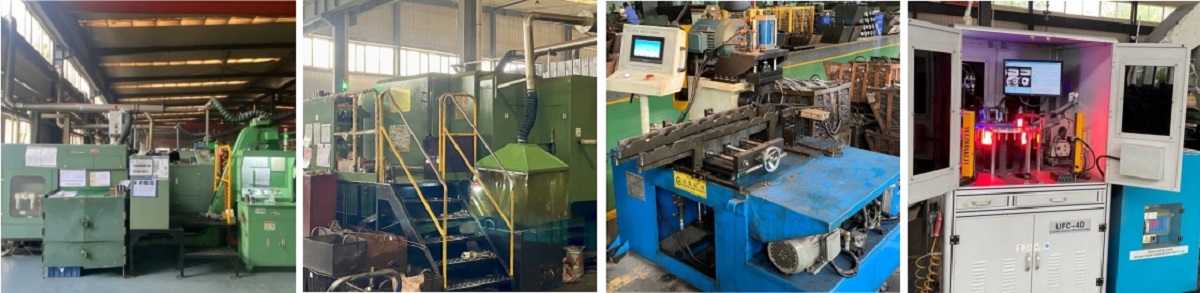

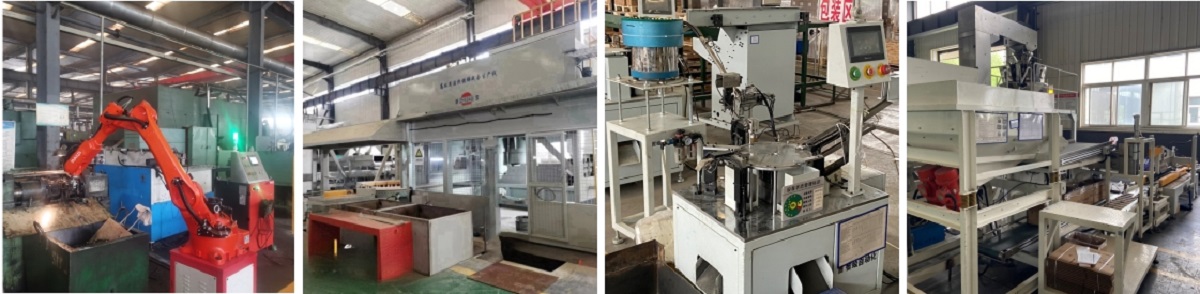

Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.

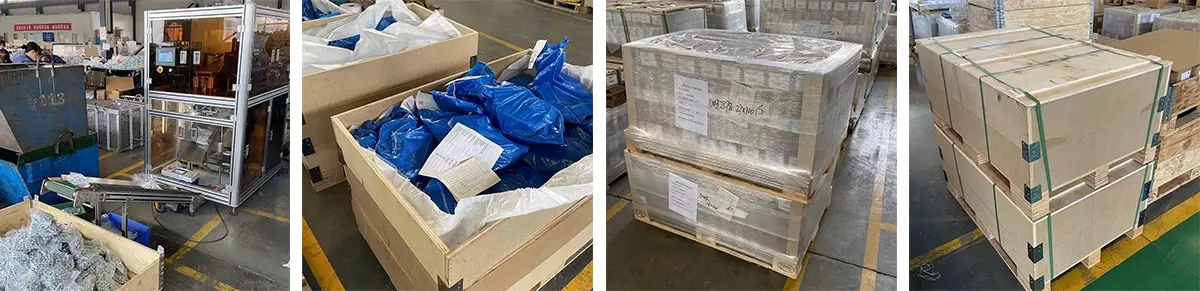

Packing
FAQ
1. Question: What are the quality standards for AS 1111.1 hexagon head bolts?
Answer: AS 1111.1 is an Australian and New Zealand standard that specifies the quality requirements and performance parameters of Class C metric hexagon head bolts. Our bolts strictly follow this standard to ensure that each bolt meets the specified quality requirements.
2.Q: Have your products passed quality certification?
Answer: Yes, our products have passed relevant quality certifications. We strictly control the production process to ensure stable and reliable product quality.
3.Q: What is the material of the bolts?
Answer: The material of AS 1111.1 hexagon head bolts is usually steel or stainless steel. The specific material depends on the customer's needs and application scenarios. We will provide suitable material selection according to the actual needs of customers.
4.Q: What are the specifications of bolts?
Answer: The bolt specifications under the AS 1111.1 standard cover a variety of sizes from M5 to M64. We can provide bolts of various specifications to meet the diverse needs of our customers.
5.Q: How long is your delivery time?
A: Lead time depends on the quantity and complexity of the order. We will develop detailed delivery plans based on customers' specific needs and complete production and shipment as soon as possible.
6.Q: Do you provide after-sales service?
Answer: Yes, we provide complete after-sales service. If customers encounter any problems or require technical support during use, we will respond promptly and provide solutions.
