DIN 6923 Hexagon Flange Nuts
Product: DIN 6923 Hexagon Flange Nuts
Property Class:8,10,12,A2-70
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
DIN 6923 hexagonal flange face nut, also known as hexagonal welding nut, is a specially designed fastener. DIN 6923 hexagonal flange nut has a hexagonal shape and one or more flanges. The diameter of the flange is usually larger than that of the nut. There are also some raised teeth on the flange. These teeth are designed to increase the friction between the nut and the parts, thereby enhancing the stability of the connection. DIN 6923 hexagonal flange nuts are divided into different strength levels, which represent the tensile strength and yield strength of the nut and are suitable for different application scenarios.
Pictures

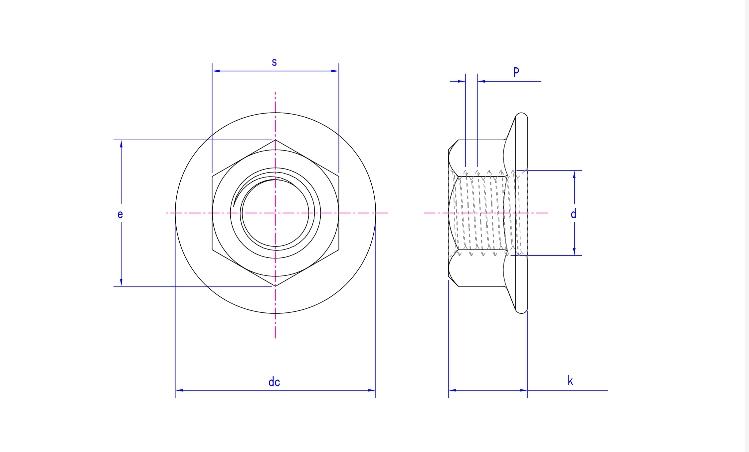

Product drawing
Product Specification
Size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
P | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | |
dc max | 11.8 | 14.2 | 17.9 | 21.8 | 26.0 | 29.9 | 34.5 | 42.8 | |
e min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | |
k | max | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 16.0 | 20.0 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 18.7 | |
s | max | 8.0 | 10.0 | 13.0 | 15.0 | 18.0 | 21.0 | 24.0 | 30.0 |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | |
Support customer customization | |||||||||
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.

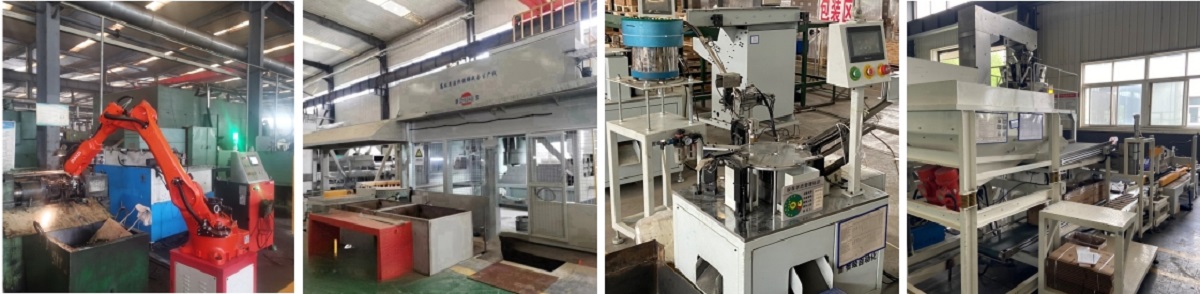

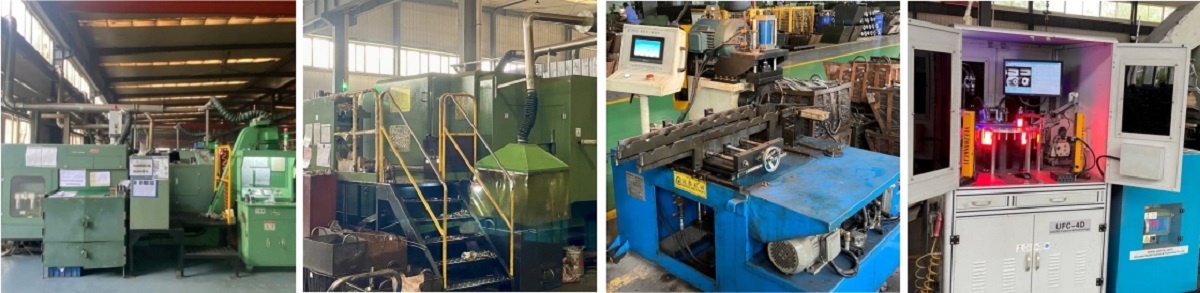

Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
Service
1. Product customization services:
According to the specific needs of customers, customized DIN 6923 hexagonal flange nuts of different sizes, materials, strength levels, etc. are provided.
Customization service can ensure that the nut fully meets the customer's equipment or project requirements, improving the reliability and stability of the connection.
2. Quality control and testing:
Strict quality control is carried out on the produced DIN 6923 hexagonal flange nuts to ensure stable and reliable product quality.

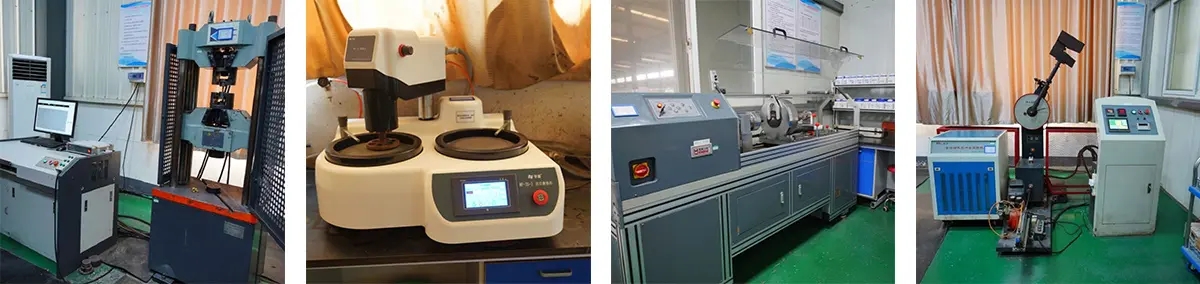

Provide necessary testing equipment and means to conduct quality testing on products to meet customer quality requirements.
