Hexagon Socket Countersunk Head Screws

Hexagon Socket Countersunk Head Screws: Precision Fastening for Flush Finishes

Hexagon socket countersunk head screws are precision-engineered fasteners designed for applications that demand both secure holding power and a flush surface finish. With a head that sits level with or below the surface of the material, hexagon socket countersunk head screws are ideal for high-strength connections where aesthetics, safety, and space efficiency are essential.

From industrial machinery to electronics, and from aerospace components to modern furniture, hexagon socket countersunk head screws deliver optimal performance, durability, and visual refinement.

What Are Hexagon Socket Countersunk Head Screws?

Hexagon socket countersunk head screws feature:

• A flat, cone-shaped head designed to sink into the material and sit flush with the surface.

• A hexagonal recess (Allen drive) in the head that allows for high torque tightening using an Allen key or hex wrench.

• A fully or partially threaded shank, depending on the required clamping force and application.

Made from high-strength steel, stainless steel, or alloy materials, hexagon socket countersunk head screws are manufactured to DIN 7991 or ISO 10642 standards for global compatibility and precision.

Key Features of Hexagon Socket Countersunk Head Screws

1. Flush Surface Finish
   The countersunk design ensures that hexagon socket countersunk head screws sit flat within the material, making them perfect for sleek surfaces or moving parts where protruding heads would cause interference.

2. High Torque Capability
   The internal hex drive allows for the application of high tightening torque, giving hexagon socket countersunk head screws superior clamping strength in critical joints.

3. Durability and Load Resistance
   Engineered for demanding environments, hexagon socket countersunk head screws provide excellent resistance to vibration, shear forces, and loosening.

4. Compact and Aesthetic
   The minimal profile of hexagon socket countersunk head screws offers a modern, clean appearance—especially valuable in visible applications.

5. Corrosion Resistance
   Available in stainless steel and black oxide finishes, hexagon socket countersunk head screws perform well in harsh or corrosive environments.

Common Applications of Hexagon Socket Countersunk Head Screws

• Machinery and Equipment Assembly: Used to create flush joints in gears, enclosures, and rotating parts.

• Electronics and Circuit Boards: Provide secure, space-saving connections.

• Automotive and Aerospace: Preferred for weight-sensitive and vibration-prone areas.

• Furniture and Interior Fixtures: Deliver clean visual results with hidden or low-profile heads.

• Precision Engineering: Ideal for robots, instruments, and custom components.

How to Install Hexagon Socket Countersunk Head Screws

1. Drill a countersunk hole with a matching angle (usually 90° or 82°) to ensure a flush fit.

2. Insert the screw and align the head with the countersink.

3. Tighten using an Allen key or hex wrench, applying consistent torque.

4. Use thread-locking compound if additional vibration resistance is needed.

For best results, pair hexagon socket countersunk head screws with washers or locking systems when used in critical load-bearing applications.

Choosing the Right Hexagon Socket Countersunk Head Screws

Consider the following factors when selecting hexagon socket countersunk head screws:

• Size and thread type (e.g., M3–M20 or imperial equivalents)

• Material (e.g., A2/A4 stainless steel, alloy steel, titanium)

• Finish (e.g., plain, zinc-plated, black oxide)

• Drive depth and torque requirements

• Standard (DIN 7991 or ISO 10642 depending on application)

Conclusion

Hexagon socket countersunk head screws offer a perfect balance of strength, precision, and aesthetic appeal. Their flush-fitting heads, high torque drive, and compact design make them ideal for any project where clean lines and secure fastening are crucial. Whether you're building advanced machinery, assembling electronics, or crafting stylish furniture, hexagon socket countersunk head screws are the trusted choice for performance and polish.

Pictures

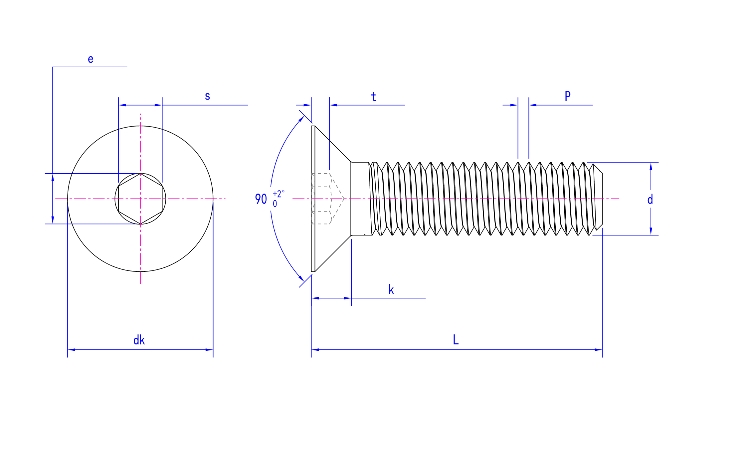

Product drawing
