AS/NZS 2465 Hexagon Head Bolts
Product: AS/NZS 2465 Hexagon Head Bolts
Property Class: Gr307A, 307B, 325, A449, A490 2,5,8
Finish:Zinc Plating（Yellow Zinc, Zinc Blue,Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
AS/NZS 2465 Hexagon Head Bolts
Overview
The AS/NZS 2465 Hexagon Head Bolts are precision-engineered fasteners that conform to the joint Australian and New Zealand Standard AS/NZS 2465. These hex bolts are designed for high-performance fastening applications in structural, automotive, industrial, and construction settings. With a classic six-sided head for easy wrenching and high tensile strength, AS/NZS 2465 Hexagon Head Bolts deliver exceptional clamping force and long-lasting reliability in demanding environments.

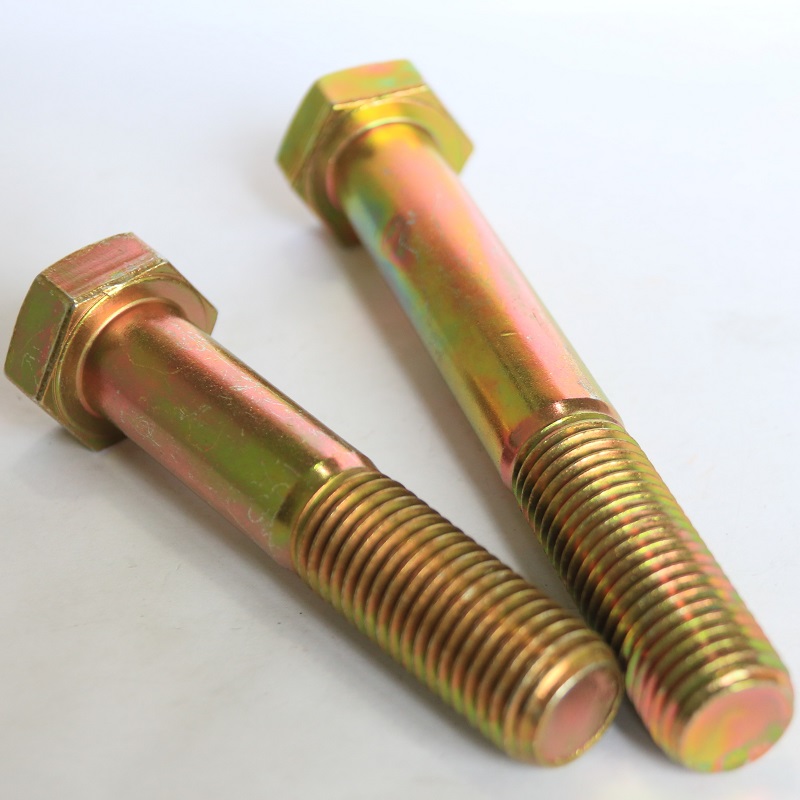

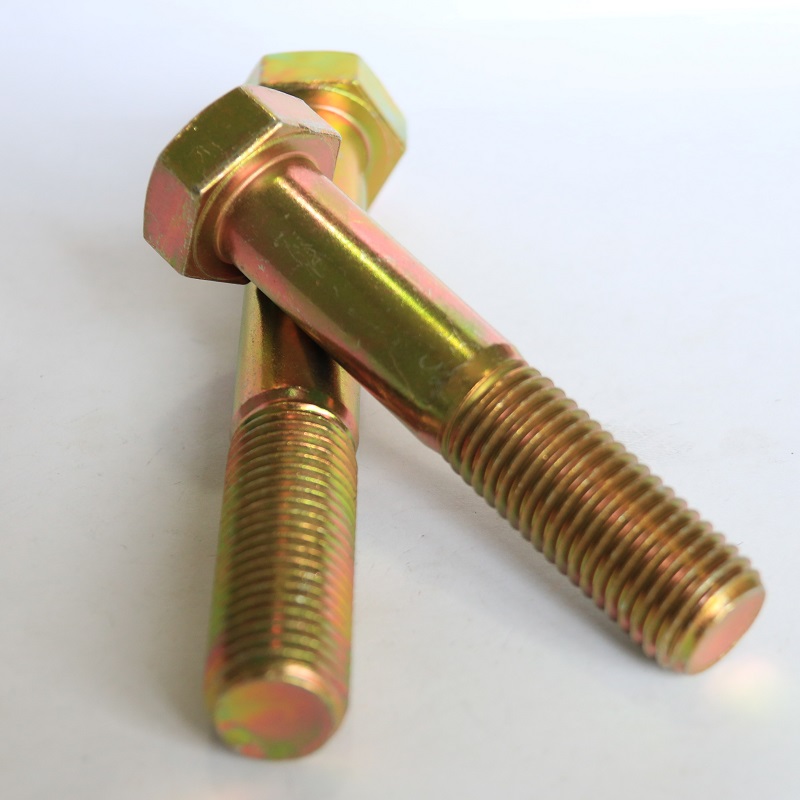

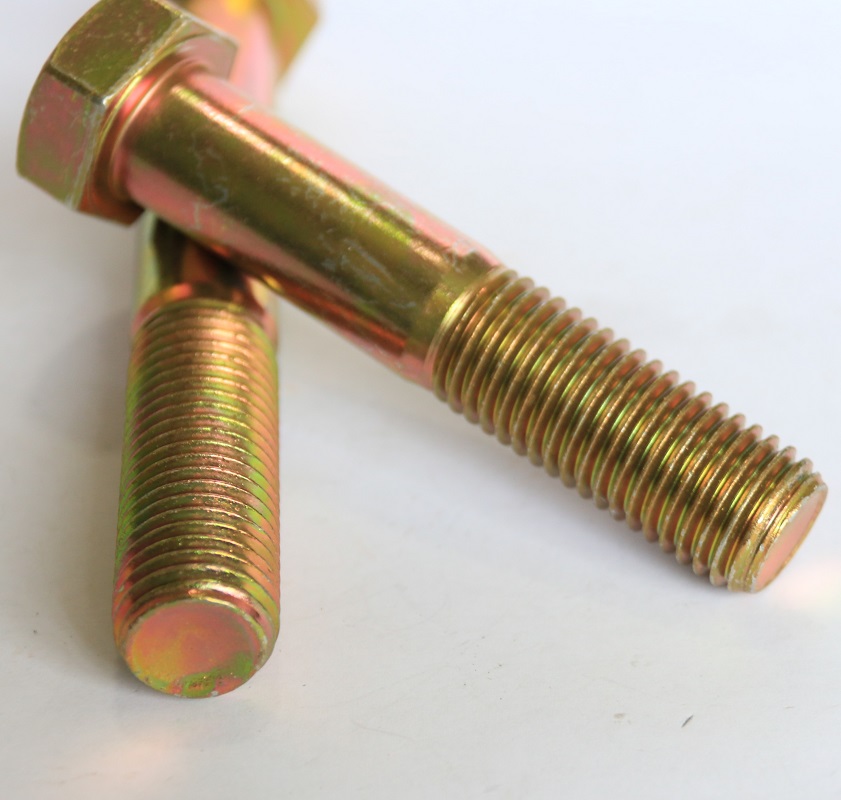

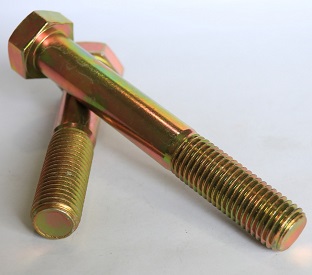

Pictures

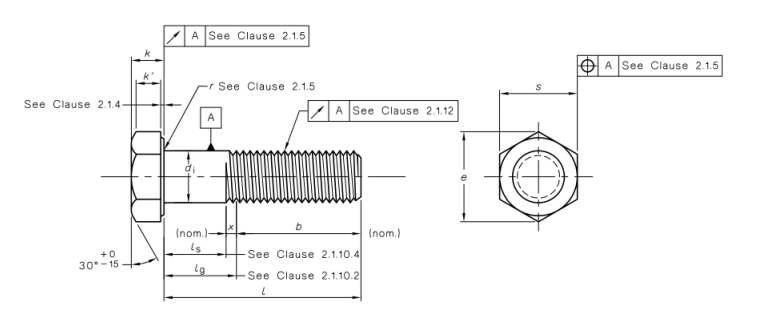

Product drawing
Product Specification
Size | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | |
d | max | 0.25 | 0.3125 | 0.375 | 0.4375 | 0.5 | 0.5625 | 0.625 | 0.75 | 0.875 | 1.0 | 1.125 | 1.25 | 1.375 | 1.5 |
min | 0.245 | 0.3065 | 0.3690 | 0.4305 | 0.4930 | 0.5545 | 0.6170 | 0.7410 | 0.8660 | 0.9900 | 1.1140 | 1.2390 | 1.3630 | 1.4880 | |
s | nom. | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 13/16 | 15/16 | 1-1/8 | 1-5/16 | 1-1/2 | 1-11/16 | 1-7/8 | 2-1/16 | 2-1/4 |
max | 0.438 | 0.5 | 0.562 | 0.625 | 0.75 | 0.812 | 0.938 | 1.125 | 1.312 | 1.5 | 1.688 | 1.875 | 2.062 | 2.25 | |
min | 0.428 | 0.489 | 0.551 | 0.612 | 0.736 | 0.798 | 0.922 | 1.10 | 1.285 | 1.469 | 1.631 | 1.812 | 1.994 | 2.175 | |
e | max | 0.505 | 0.577 | 0.65 | 0.722 | 0.866 | 0.938 | 1.083 | 1.299 | 1.516 | 1.732 | 1.949 | 2.165 | 2.382 | 2.598 |
min | 0.488 | 0.557 | 0.628 | 0.698 | 0.84 | 0.91 | 1.051 | 0.254 | 1.465 | 0.675 | 1.859 | 2.066 | 2.273 | 2.48 | |
k | nom. | 5/32 | 13/64 | 15/64 | 9/32 | 5/16 | 23/64 | 25/64 | 15/32 | 35/64 | 39/64 | 11/16 | 25/32 | 27/32 | 1-5/16 |
max | 0.163 | 0.211 | 0.243 | 0.291 | 0.323 | 0.371 | 0.403 | 0.483 | 0.563 | 0.627 | 0.718 | 0.813 | 0.878 | 0.974 | |
min | 0.15 | 0.195 | 0.226 | 0.272 | 0.302 | 0.348 | 0.378 | 0.455 | 0.531 | 0.591 | 0.658 | 0.749 | 0.81 | 0.902 | |
k' min | 0.106 | 0.14 | 0.16 | 0.195 | 0.215 | 0.25 | 0.269 | 0.324 | 0.378 | 0.416 | 0.461 | 0.530 | 0.569 | 0.640 | |
l | <=6 | 0.75 | 0.875 | 1.0 | 1.125 | 1.25 | 1.375 | 1.50 | 1.75 | 2.0 | 2.25 | 2.5 | 2.75 | 3.0 | 3.25 |
>6 | 1.0 | 1.125 | 1.25 | 1.375 | 1.5 | 1.625 | 1.75 | 2.00 | 2.25 | 2.5 | 2.75 | 3.0 | 3.25 | 3.5 | |
x max | 0.25 | 0.278 | 0.312 | 0.357 | 0.385 | 0.417 | 0.455 | 0.5 | 0.556 | 0.625 | 0.714 | 0.714 | 0.833 | 0.833 | |
FIM max | 0.01 | 0.011 | 0.012 | 0.013 | 0.014 | 0.015 | 0.017 | 0.02 | 0.023 | 0.026 | 0.029 | 0.033 | 0.036 | 0.039 | |
Support customer customization | |||||||||||||||
Key Features of AS/NZS 2465 Hexagon Head Bolts
Standardized Hex Head Design
The hexagonal head offers excellent tool engagement, allowing for high-torque tightening. AS/NZS 2465 Hexagon Head Bolts are compatible with standard spanners, sockets, and power tools.AS/NZS 2465 Compliance
Manufactured in full compliance with AS/NZS 2465, these bolts meet strict mechanical and dimensional specifications, ensuring quality, interchangeability, and structural integrity.Thread Options
Available in both coarse and fine metric thread variants, AS/NZS 2465 Hexagon Head Bolts provide optimal thread engagement and resistance to vibration loosening.Durable Materials and Finishes
Constructed from high-grade carbon steel, alloy steel, or stainless steel, these bolts can be supplied with finishes such as hot-dip galvanizing, zinc plating, or plain for corrosion protection.Wide Range of Sizes
From M6 to M36 and beyond, AS/NZS 2465 Hexagon Head Bolts are offered in various lengths to accommodate light to heavy-duty applications.
Applications of AS/NZS 2465 Hexagon Head Bolts
Steel Construction
Commonly used in steel structures, bridges, and frames, AS/NZS 2465 Hexagon Head Bolts ensure strong, vibration-resistant joints.Automotive and Heavy Transport
Perfect for chassis assemblies, engine mounts, and suspension systems that require high strength and precision.Mining and Resource Sector
Trusted in the harsh environments of mining, AS/NZS 2465 Hexagon Head Bolts offer performance under load, heat, and corrosion.Infrastructure Projects
These bolts are a standard choice in rail, telecom tower, and road infrastructure due to their load-bearing reliability and easy availability.General Industrial Use
Whether used in machinery, equipment manufacturing, or tooling, AS/NZS 2465 Hexagon Head Bolts provide consistent fastening strength.
Benefits of AS/NZS 2465 Hexagon Head Bolts
✅ High Strength & Stability
Designed for load-bearing applications, these bolts provide exceptional tensile and shear strength.✅ Excellent Tool Compatibility
The hex head allows for fast, secure installation with common hand or power tools.✅ Corrosion Protection
Protective coatings extend service life in outdoor or chemically exposed environments.✅ Reliable Thread Engagement
Threads are precisely rolled or cut to fit seamlessly with compatible nuts or threaded holes.✅ Standards-Based Quality
Full adherence to AS/NZS 2465 means every bolt is manufactured with repeatable quality and precision.
If you're seeking durable, standardized, and high-performance fasteners for demanding applications, the AS/NZS 2465 Hexagon Head Bolts are the ideal choice. These bolts offer optimal strength, consistent performance, and compliance with Australian and New Zealand standards. Whether in structural steelwork, heavy machinery, or high-vibration systems, AS/NZS 2465 Hexagon Head Bolts deliver unmatched fastening reliability.
